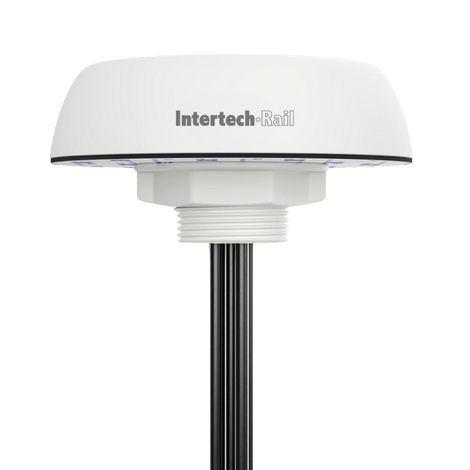

  • White Intertech-Rail GPS antenna with black cable extending downwards; on a white background.
    Escreva sua legenda aqui
    Botão

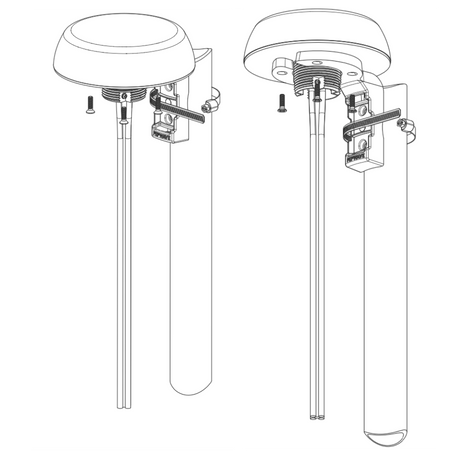

  • Two diagrams showing the assembly of a sensor with mounting bracket, screws, and a cylindrical post.

    Título do Slide

    Escreva sua legenda aqui
    Botão
  • Black Intertech-Rail GPS antenna atop a silver pole.

    Título do Slide

    Escreva sua legenda aqui
    Botão
  • Installation of a shower head mount on a wall with screws.

    Título do Slide

    Escreva sua legenda aqui
    Botão

ANTENNA 22G


The Antenna 22G is a high-performance 5-in-1 antenna system designed for transportation, public safety, and mission-critical connectivity. Supporting LTE/5G MIMO, dual-band Wi-Fi (2.4 & 5 GHz), and a high-gain GPS tracking antenna, it delivers strong, reliable, and future-proof wireless coverage.


Built with a durable UV-stable housing and IP68 protection, the Antenna 22G is engineered for harsh outdoor environments. With multiple mounting options and flexible cable lengths, it offers easy deployment for railway, fleet, and mobile healthcare applications that demand secure and continuous wireless connectivity.

Botāo de texto

● 5-in-1 antenna system: 2× LTE/5G, 2× Wi-Fi, 1× GPS

● Wide cellular frequency support (600–6000 MHz), 5G-ready

● Dual-band Wi-Fi: 2.4 GHz (4.8 dBi) and 5 GHz (7.4 dBi)

● High-gain GPS antenna with 28 dB LNA for precise tracking

● Rugged housing: UV-stable, IP68-rated, salt spray & UV tested

● Available in black or white for flexible deployments

● Resistant to extreme temperatures (-40 °C to +80 °C) and high winds (up to 220 km/h)

● Easy installation: panel, wall, or pole mounting with multiple accessories


Botāo de texto

ANTENNA ELEMENTS


● Cellular: 2× LTE/5G (617–960 MHz, 1710–2700 MHz, 3400–4200 MHz, 5000–6000 MHz)

● Wi-Fi: 2× dual-band (2.4 GHz & 5 GHz)

● GPS: 1× GPS/GNSS (1561–1602 MHz), LNA gain 28 dB


PERFORMANCE


● Cellular gain: up to 6.0 dBi

● Wi-Fi gain: up to 7.4 dBi

● GPS gain: up to 1.6 dBi (with LNA)

● Impedance: 50 Ω | VSWR < 2.5

● Feed power handling: 10 W

Cables & Connectors

● Cellular/Wi-Fi: CFD-200 coax, SMA male & RP-SMA male

● GPS: RG-174 coax, SMA male

● UV-resistant jacket | low-loss cable

Mechanical & Mounting

● Dimensions: Ø 130 mm × H 36 mm

● Mounting: panel, wall, or pole | max panel thickness 15 mm

● Housing: UV-stable PC+ABS | color: black or white


ENVIRONMENTAL & COMPLIANCE


● Protection: IP68 | Wind survival: 220 km/h

● Temperature: –40 °C to +80 °C operating & storage

● Standards: RoHS, REACH, WEEE, UL flammability ratings

● Salt spray & UV exposure tested
