Rail-ID Model X

handheld RFID reader

  • PN 2-02-9-2150
Guide Download

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

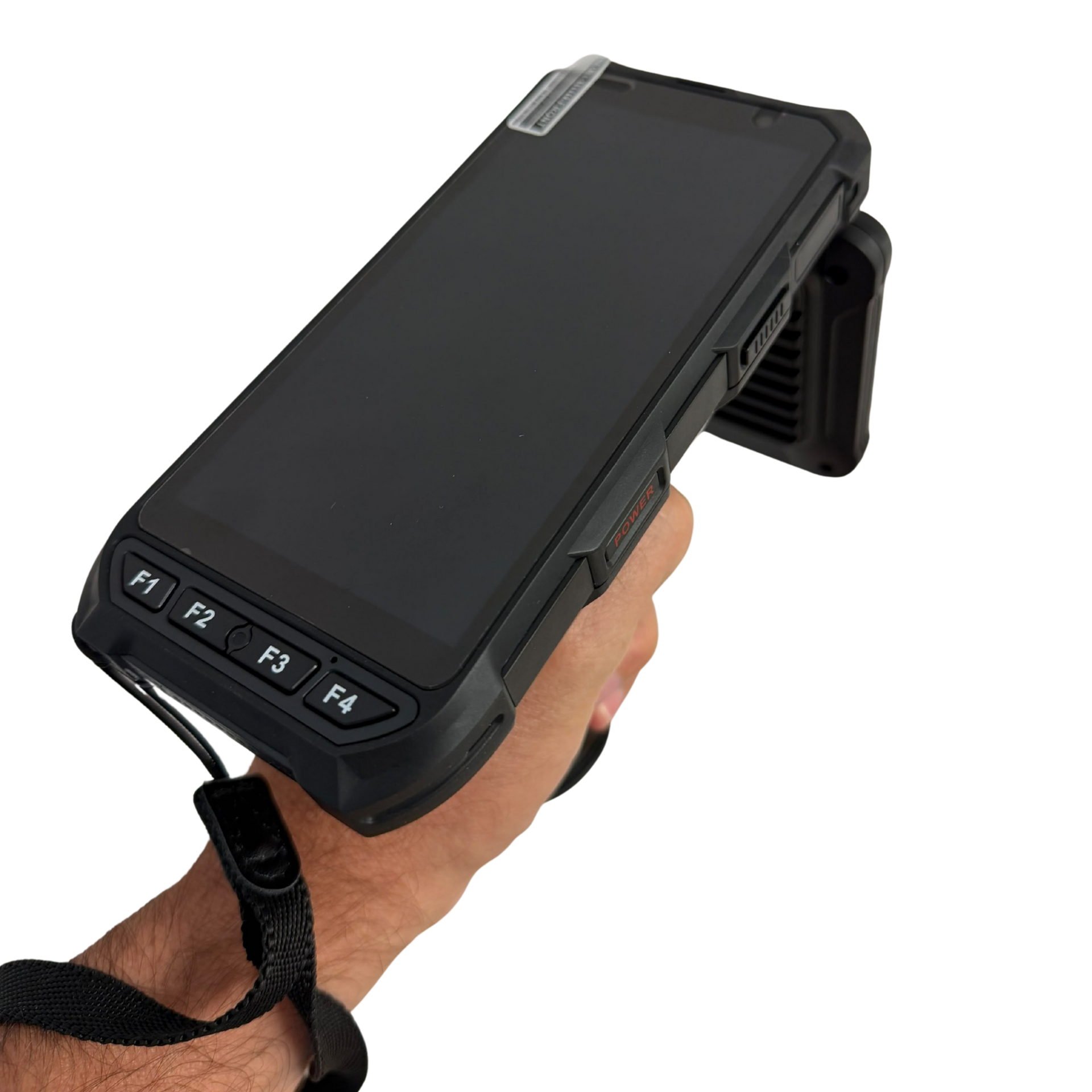

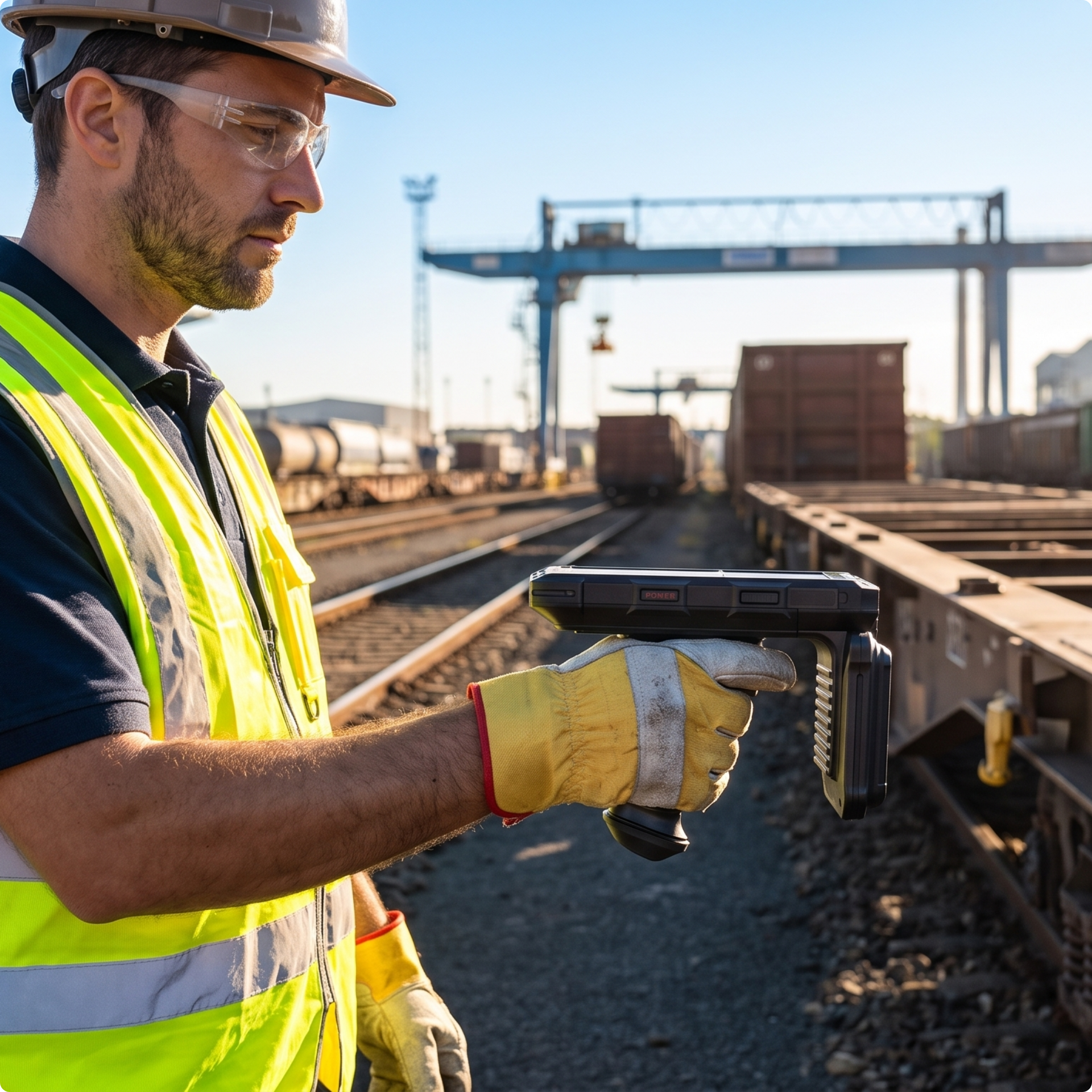

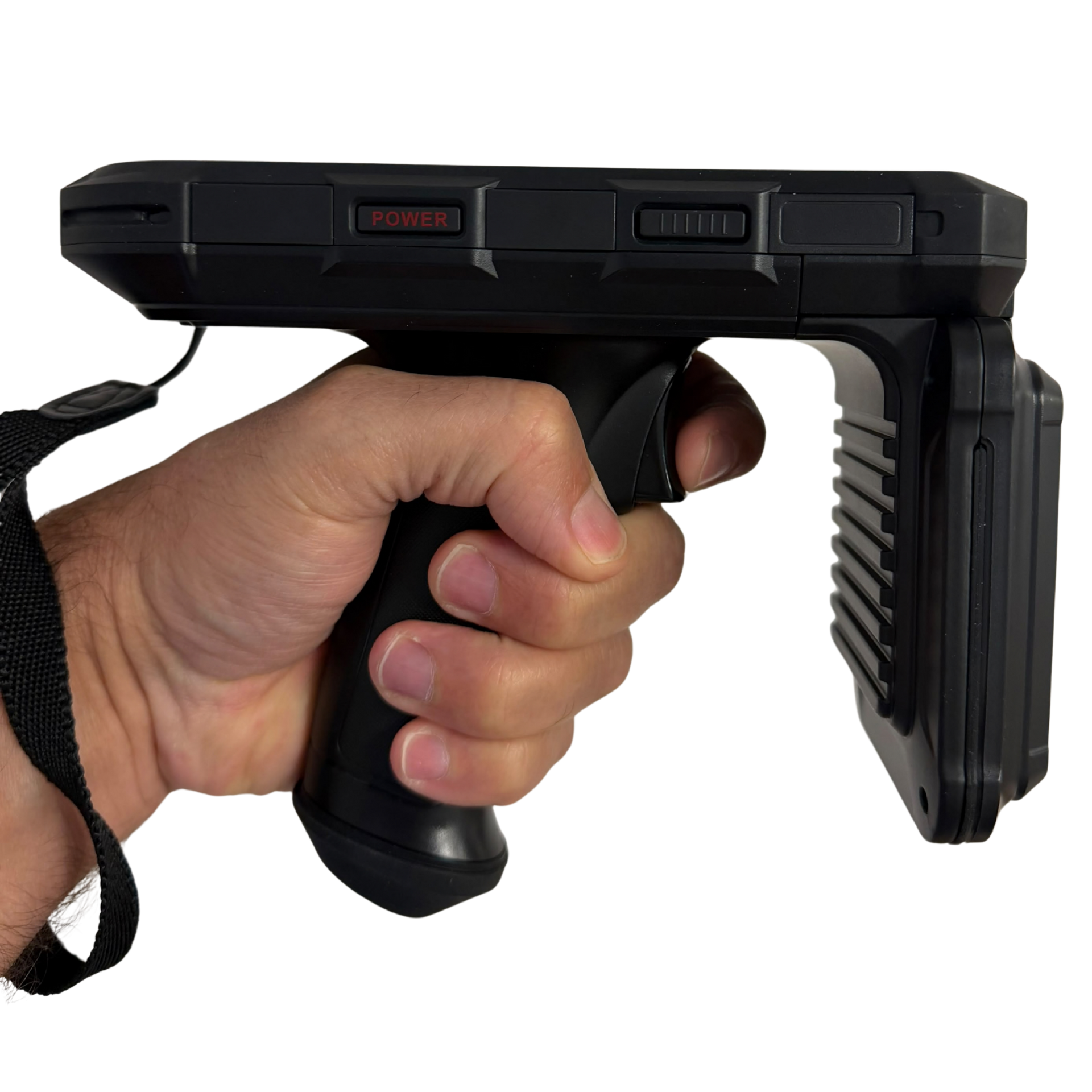

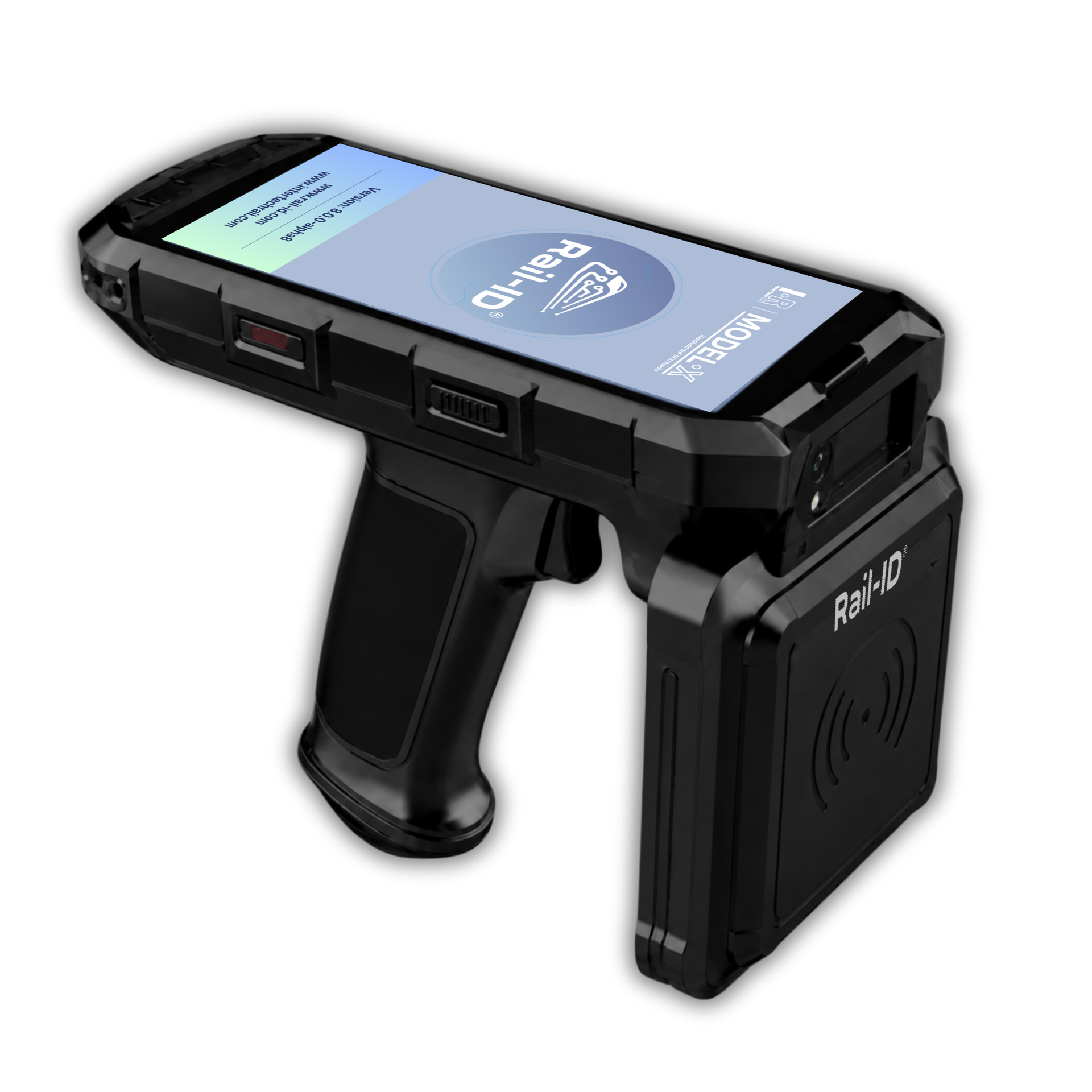

The Rail-ID® Model X is a rugged handheld Android RFID reader engineered for fast, reliable rail asset identification directly in the field. Built around an ergonomic pistol-grip design, it lets field crews scan RFID tags, capture barcodes, and access data in a single motion — without setting down other tools or paperwork.


At its core, the Model X pairs a 2.0GHz Octa-Core processor and Android 13 with a bright 5.5" HD display, delivering the responsiveness of a modern smartphone in a housing rated IP65 and built to survive drops of up to 1.5 meters. A 7,200 mAh battery keeps the device running through full shifts in the yard, while 4G, Wi-Fi, Bluetooth 5.0, and GPS keep it connected wherever the work takes it.


With RFID read ranges of up to 10 meters and support for EPC Gen2, ISO/IEC 18000-6C, ATA/AAR, Balise, and AEI protocols through Rail-ID Model Software®, the Model X handles everything from routine axle-tag reads to full asset inventories — making it a single, dependable tool for AEI operations, yard inspections, and rail asset management.

  • All-in-one handheld RFID reader powered by Android 13 and an Octa-Core 2.0 GHz processor
  • Supports UHF RFID EPC Gen2, ISO/IEC 18000-6C, and ATA/AAR tags, including Balise and AEI applications
  • Extended RFID reading range of up to 10 meters with a circularly polarized 4.5 dBi antenna
  • Integrated 1D and 2D barcode scanning for versatile data collection
  • 5.5-inch HD display with dual cameras (5 MP front / 13 MP rear)
  • Multiple connectivity options including 4G LTE, Wi-Fi, Bluetooth 5.0, and GPS
  • Rugged IP65-rated design with 1.5 m drop resistance for demanding field environments
  • Long-lasting 7,200 mAh battery for extended operation
  • Includes Rail-ID Model Software® supporting GEN2 Axle Tags, ATA/AAR Tags, and customized protocols

Applications

  • Automatic Equipment Identification (AEI)
  • Balise identification and data collection
  • ATA/AAR tag reading
  • RFID-based rail asset identification
  • Axle tag reading and management
  • Mobile RFID field inspections
  • Rail yard inventory and asset tracking
  • Barcode and RFID data collection in rail operations
  • Maintenance and inspection activities
  • Rail-ID software-based tag management and programming workflows

FREQUENCY


UHF: US/FCC 902–928 MHz · EU/CE 865–868 MHz (optional, per region)

HF (optional): 13.56 MHz — ISO 14443A & 15693, NFC-IP1, NFC-IP2


READ RANGES


UHF: up to 10m (typical, depending on environment and tag type)

HF (optional): 2–5 cm


HARDWARE FEATURES


Power Requirements

  • Display: 5.5" IPS HD, 720×1440
  • System: Cortex A73 2.0GHz Octa-Core · RAM 4GB / ROM 64GB · Android 13
  • RF Output: 1W / 30 dBm (Max) · Circularly polarized antenna, 4.5 dBi
  • Power: 7,200 mAh Lithium-Ion battery · DC 5V/3A adaptor
  • Notification: LED Indicator, Speaker, Vibrator
  • Scanner/Data Capture: 2D engine (supports 1D & 2D) · 5MP front camera · 13MP rear camera
  • IO Ports: 1× USB Type-C · 2× PSAM card slots · 2× SIM card slots · 1× TF card slot (up to 256GB)

PHYSICAL CHARACTERISTICS


Weight: 600g (with battery)

Dimensions (L×W×H): 170×80×145mm


ENVIRONMENT


Operating Temperature: -20°C to 50°C

Storage Temperature: -20°C to 70°C

Humidity: 5–95% RH, non-condensing

Drop Resistance: 1.5m/5ft

Sealing: IP65


CERTIFICATIONS


FCC, CE

Standards / Security-Compliance: [to confirm] — not listed in the datasheet


NETWORKING


Bluetooth: BT V2.1+EDR, BLE V5.0

WLAN: 802.11 a/b/g/n/ac, 2.4/5GHz

WWAN: 2G/3G/4G TDD-LTE (bands 38–41)/4G FDD-LTE (bands 1,2,3,4,5,7,8,12,17,20)

GPS: Embedded A-GPS, ±5m tolerance


SOFTWARE/FIRMWARE


Rail-ID Model Software®: EPC GEN2, ISO/IEC 18000-6C, ATA/AAR, ATA/AAR Tags (Balise/AEI — Read Only), GEN2 Axle Tags


LICENSING


[to confirm] — use the same standard text as the Model 2 page?


ACCESSORIES

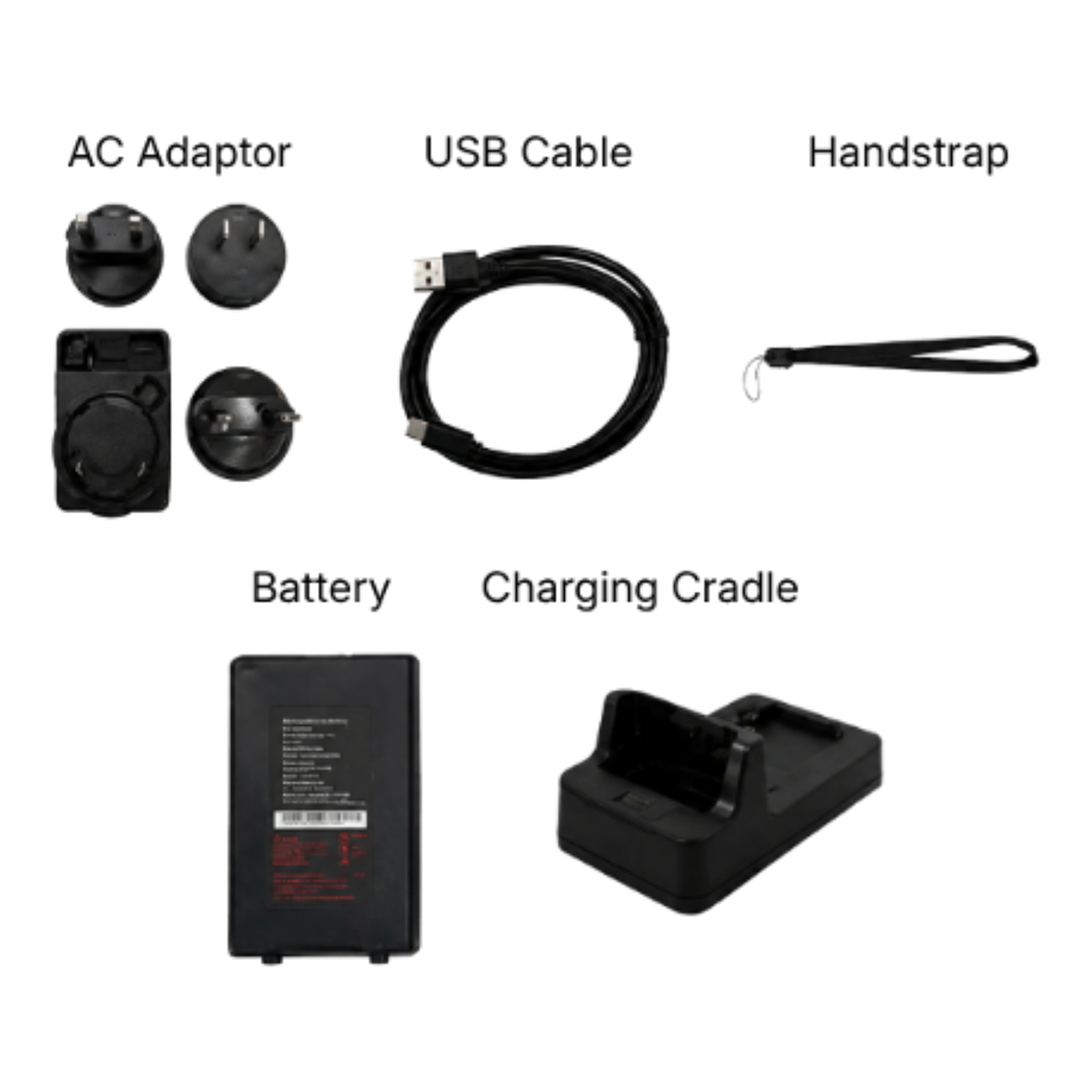

AC Adaptor, USB Cable, Handstrap, Battery, Charging Cradle (optional)


PART NUMBERS


2-02-9-2150

LED Indicator

• Power

• Battery

• HDD

• RF status


Keypad and Buttons

•1 x Power button

• 1 x Home button

• 2 x Volume buttons

• 2 x Programmable Function Keys


Integrated Scanner / Data Capture

• Optional 1D / 2D barcode scanner

• 8MP rear camera with autofocus and LED light

• 8MP front camera


PHYSICAL CHARACTERISTICS


Weight

• 1.2 kg (2.65 lbs) with standard battery

• 1.4 kg (3.1 lbs) with optional high-capacity battery


Dimensions

Height: 0.8 in (1.95 cm)

Width: 7.8 in (19.73 cm)

Length: 10.7 in (27.19 cm)


ENVIRONMENT


Operating Temperature

-4°F to 140°F (-20°C to 60°C)


Storage Temperature

-22°F to 158°F (-30°C to 70°C)


Humidity

10% to 90% RH, non-condensing


Free-Fall Drop Resistance

MIL-STD-810G Method 516.6, 4 ft


Dust/Water Ingress

IP65

Meets MIL-STD 810F method 512.4 procedure

1 IP67


CERTIFICATIONS


Certifications

• CE

• FCC

• UL

• PTCRB

• Verizon


Standards

• MIL-STD-810H

• AREMA Class C


Security / Compliance Features

• TPM 2.0

• Kensington Lock Support

• SOTI MobiControl Compliance


NETWORKING


Wireless LAN

Optional 4G LTE support


Positioning

• GPS / GLONASS


• Micro SIM card slot


SOFTWARE/FIRMWARE FEATURES


Protocols

• AEI

• TransCore Super eGo® (SeGo)

• eGo

• ATA

• AAR

• ISO 18000-6C (Gen2)


Software Development Kit

• Integrated with Rail-ID Programmer Software®


LICENSING


License Certificate

Special programming and/or modules are based on specific part numbers. Please contact Intertech Rail for more information.


ACCESSORIES

• Capacitive Stylus

• Standard Battery


PART NUMBERS

• 2-02-9-3000-AAR – AAR / AEI Standard Tag

• 2-02-9-3000-AES – Balise Programmer
