Rail-ID Model 2

tablet reader

  • PN 20-9920-NNN Standard 915MHz E1R
  • PN 20-9921-NNN Non-Incendive 915MHz E1R
  • PN 20-9922-NNN 870MHz ETSI E1R
Guide Download

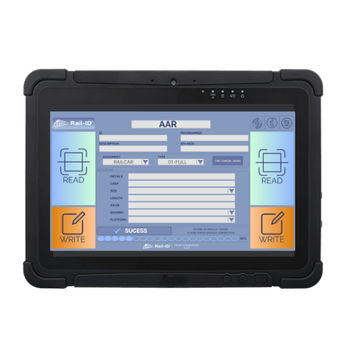

  • Rail-ID rugged tablet RFID reader front view by Intertech Rail for railway AEI and AAR applications

    Título do Slide

    Escreva sua legenda aqui
    Botão

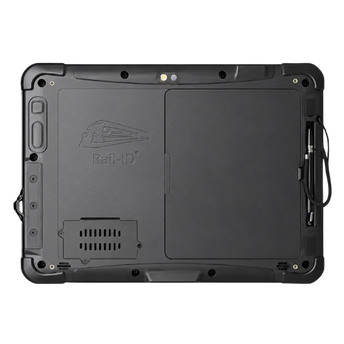

  • Rail-ID rugged tablet RFID reader rear view by Intertech Rail with industrial railway rugged housing

    Título do Slide

    Escreva sua legenda aqui
    Botão

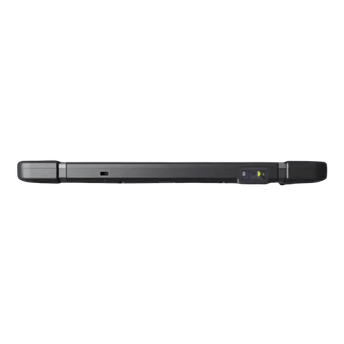

  • Side view of Rail-ID rugged tablet RFID reader by Intertech Rail for railway field operations

    Título do Slide

    Escreva sua legenda aqui
    Botão

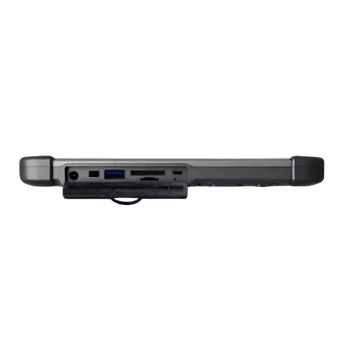

  • Profile view of Rail-ID rugged tablet RFID programmer by Intertech Rail for AEI and railway RFID applications

    Título do Slide

    Escreva sua legenda aqui
    Botão

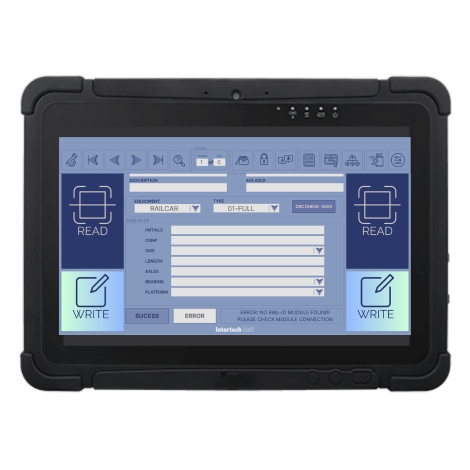

TransCore’s Encompass® 1 Rugged (E1R) combines TransCore’s mobile radio frequency identification (RFID) technology with a ruggedized tablet computer, creating a powerful tool for all of your data collection needs. The E1R is also widely used as an AAR Reader and Android-based AAR programmer for railway RFID and AEI field operations.


The E1R offers 915MHz and 870MHz RFID variants for global compatibility. Whether working in hot, dusty conditions or cold, damp weather, this rugged Android AAR Reader is designed to withstand some of the harshest working environments.


In hazardous locations, the optional Class 1, Division 2 rated unit offers the same durability in a non-incendive package.


The E1R provides WiFi, Bluetooth, GPS, and 4G wireless connections for interfacing with a variety of networks and peripheral devices. The tablet also offers USB and RS232 ports for added convenience.


The E1R is ideal for mobile RFID solutions, including AEI for railyard management, remote and field programming, AAR tag programming, railway RFID maintenance, toll plaza and HOT enforcement, parking/access control, and warehouse management.

  • Integrated rugged RFID reader and tablet computer
  • Available with Windows 10/11 IoT or Android 13.0 operating systems
  • Reads from and programs multiple railway RFID protocols and formats through Rail-ID Programmer Software®

• AEI

• TransCore Super eGo® (SeGo)

• eGo

• ATA

• AAR

• ISO 18000-6C (Gen2)


  • 915MHz and 870MHz RFID TransCore programming support for global compatibility
  • IP65-rated rugged housing with MIL-STD-810G certification
  • Sunlight-readable 10.1” display with optical bonding and anti-glare treatment
  • GPS/GLONASS positioning and optional 4G LTE wireless support
  • Optional 1D/2D barcode scanner
  • 8MP front and rear cameras
  • Hot-swappable battery system for all-day field productivity

Applications

  • Automatic Equipment Identification (AEI)
  • AAR / AEI tag reading and programming
  • Remote / Field Programming
  • Balise Programming
  • Rail Yard Management
  • Railway Asset Identification
  • Mobile Railway Inspection
  • Field Maintenance Operations

FREQUENCY


915MHz or 870MHz RFID TransCore Programmer

Global compatibility for railway RFID and AEI applications


READ RANGES


Typical read range: 7 to 20 ft (2.13 to 6.10 m)*

*depending on tag type and operating environment


WRITE RANGES


Typical write ranges: 70% of read range


HARDWARE FEATURES


Power Requirements

• 19V DC adapter

• 100-240V, 50-60Hz / 19V DC

• Standard Battery: 7.7V, typ. 5900 mAh Li-Polymer Battery

• Standard Battery Operating Time: 9 hours

• Optional High-Capacity Battery: 7.4V, typ. 10280 mAh Li-Polymer Battery

• High-Capacity Battery Operating Time: 16 hours

• Hot-swappable battery system


LED Indicator

• Power

• Battery

• HDD

• RF status


Keypad and Buttons

•1 x Power button

• 1 x Home button

• 2 x Volume buttons

• 2 x Programmable Function Keys


Integrated Scanner / Data Capture

• Optional 1D / 2D barcode scanner

• 8MP rear camera with autofocus and LED light

• 8MP front camera


PHYSICAL CHARACTERISTICS


Weight

• 1.2 kg (2.65 lbs) with standard battery

• 1.4 kg (3.1 lbs) with optional high-capacity battery


Dimensions

Height: 0.8 in (1.95 cm)

Width: 7.8 in (19.73 cm)

Length: 10.7 in (27.19 cm)


ENVIRONMENT


Operating Temperature

-4°F to 140°F (-20°C to 60°C)


Storage Temperature

-22°F to 158°F (-30°C to 70°C)


Humidity

10% to 90% RH, non-condensing


Free-Fall Drop Resistance

MIL-STD-810G Method 516.6, 4 ft


Dust/Water Ingress

IP65

Meets MIL-STD 810F method 512.4 procedure

1 IP67


CERTIFICATIONS


Certifications

• CE

• FCC

• UL

• PTCRB

• Verizon


Standards

• MIL-STD-810H

• AREMA Class C


Security / Compliance Features

• TPM 2.0

• Kensington Lock Support

• SOTI MobiControl Compliance


NETWORKING


Wireless LAN

Optional 4G LTE support


Positioning

• GPS / GLONASS


• Micro SIM card slot


SOFTWARE/FIRMWARE FEATURES


Protocols

• AEI

• TransCore Super eGo® (SeGo)

• eGo

• ATA

• AAR

• ISO 18000-6C (Gen2)


Software Development Kit

• Integrated with Rail-ID Programmer Software®


LICENSING


License Certificate

Special programming and/or modules are based on specific part numbers. Please contact Intertech Rail for more information.


ACCESSORIES

• Capacitive Stylus

• Standard Battery


PART NUMBERS

• 2-02-9-3000-AAR – AAR / AEI Standard Tag

• 2-02-9-3000-AES – Balise Programmer
