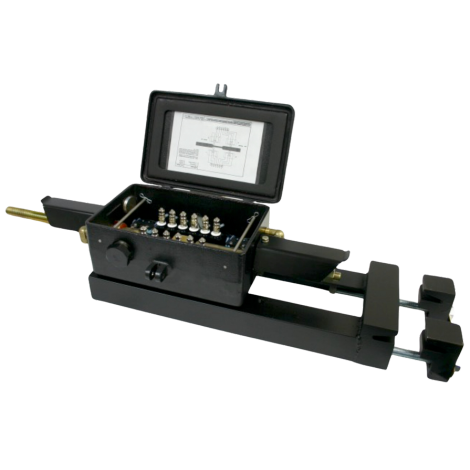

SWITCH CIRCUIT CONTROLLER

Switch Circuit Controller

Switch Machine, Intertechrail

  • IR100 Switch Circuit
  • IR 210 Switch Circuit
Guide Download

The IR100 and IR210 switch circuit controllers are for a wide range of applications monitoring the position of rail switch points, one or two points of the switch points, providing electrical signals to control the indication of electric switch locks, electric switch machines, hand-operated mechanical switches, spring switches, derail blocks, etc. Intertech Rail circuit controllers meet the most demanding regulatory specifications and are prepared to act in the most stringent requirements of the railway sector, in adherence with the AREMA and CENELEC standards. They have high sensitivity, reliability, and robustness to support mechanical stresses under a wide variety of environmental conditions.

The IR100 and IR210 switch controllers are sensitive because the contacts are transferred from their position with an adjustable movement between 3 and 6 mm in the switch points; It is reliable because it has a positive action contact mechanism with spring contact pressure resistance against vibration; Both are versatile due to their set of operation adjustable cams contacts that shall work simultaneously or progressively, being able to operate to the right or left side of the track, with a simple inversion of the con-centric axis. Simple maintenance where the cover provides easy internal access to the contacts, adjustable mechanical parts and electrical connection terminals.
