Intertech Rail - Made in USA
IRM23 MAINLINE

IRM23 Mainline

Switch Machine, Intertech Rail, Irm23

  • Irmx 23 Compatible
Guide Download

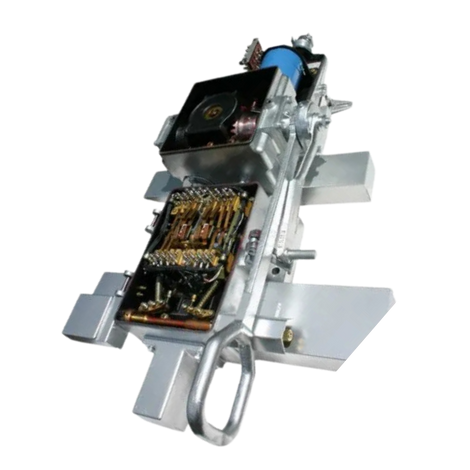

The IRM23 switch machine is a rugged and reliable dual-control electric switch machine. It is available in several different gear ratios and provides independent locking and point detection for main-line applications.


Available in 110 or 20 volt operating voltages for both 3 and 5 wire control and can be configured with either an “A” or “B” style hand-throw pinion.


Features include improved loop style hand throw for safety and an improved permanent magnet motor design for reliability.

  • “A” or “B” Style
  • Independent Lock and Point Detection
  • 24 or 110 VDC Operation
  • 189:1, 360:1 and 528:1 Gear Ratios
  • Rugged Permanent Magnet Motor
  • Mechanical Controller
  • Loop Style Hand Throw for Safety
  • Extended Wire Harness Available
  • 24V or 110 V heaters
  • 3 or 5 wire control
  • Custom Colors Available
  • Ships in Enclosed Crate
  • Includes Gear Box Lubricant
  • Completely Interchangeable with M23
  • Meets all AREMA Specifications
  • 5 Year Warranty

A/B - Hand Throw Locking

A = Locks and indicates an on-hand throw

B = Does not lock and indicate on hand throw


Voltage (High or Low)

H - Choose 110V

L - Choose 20V
