Electric Switch Machine

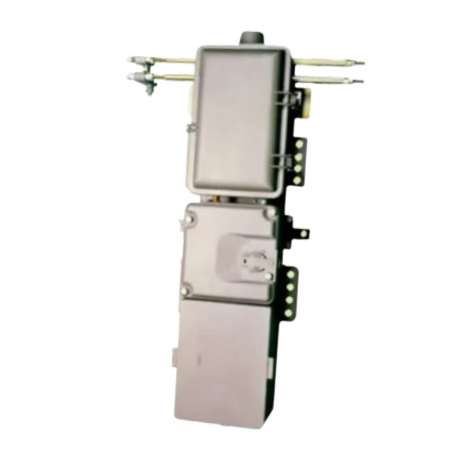

Switch Machine, IntertechRail, IRM3

Guide Download

The Switch Machine Model IR5G is a fail-safe equipment, in accordance with the AREMA Standards (AAR), specially designed for applications in mainline, interlocking and rapid transit. The machine time-tested mechanical construction and field-proven circuit controller are designed to provide maximum safety and dependable operation during the machine's long service life, while requiring only minimal maintenance.

TECHNICAL DETAILS

Length x Width x Height: 80" x 35"

x 9.50"


  • Throw Bar Stroke: 6 in
  • Thrust: Max 2,500 lbs / 1,134 Kg
  • Weight: 1,065 lbs / 484 Kg
  • Motor Voltage: 110/24 VDC
  • Power Wiring: 4 wire
  • Manual Control: Hand Crank

5 Years Warranty.

Technical Assistance and

Maintenance.
