Periodic Antenna

Antenna,  PCB Log Periodic  915 MHz  without checktag

PN 2-02-3-0012

Standard price: USD 60 per unit (subject to approval)
Demo price: USD 25 per unit (available after  project assessment)

Guide Download

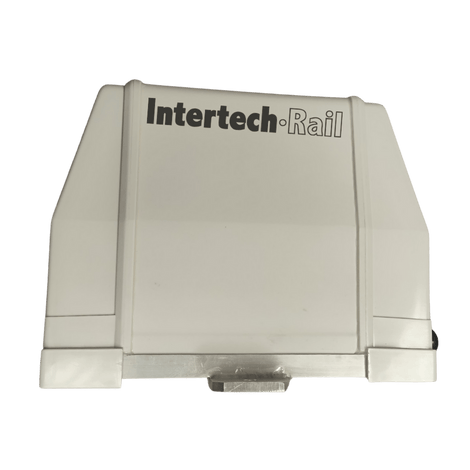

  • A white, rectangular Intertech-Rail mechanical housing unit with a metal base on a plain white background.

    Título do Slide

    Escreva sua legenda aqui
    Botão

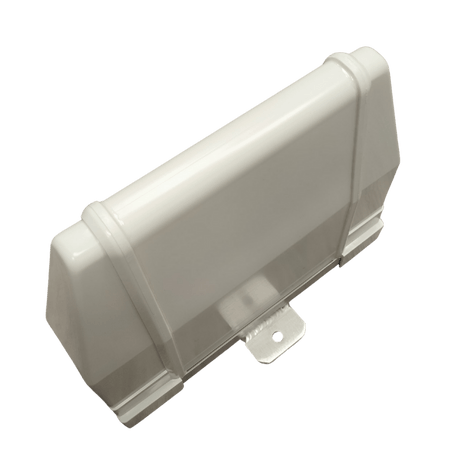

  • A white, rectangular directional cellular or Wi-Fi antenna with a small mounting bracket attached at the bottom.

    Título do Slide

    Escreva sua legenda aqui
    Botão
  • A white industrial device with a prominent yellow warning label stating danger, featuring a black button on top.

    Título do Slide

    Escreva sua legenda aqui
    Botão

TransCore’s AA3140 Printed Circuit Board (PCB) Log Periodic Antenna broadcasts and receives radio frequency (RF) signals in the 845 to 950 MHz band. The AA3140 antenna is a compact, low gain, wide beam-width antenna ideal for installations requiring maximum coverage at close range (up to 20 ft).


For installation requiring a relatively symmetrical, three-dimensional reading area, the AA3140 PCB Log Periodic Antenna offers a broadcast pattern of similar configuration and dimension in both the horizontal 90° and vertical 60° planes.


A low-profile weatherproof radome provides protection from harsh environmental conditions, including snow, ice, and strong winds. The coated outer surface of the radome has favorable electrical characteristics and high resistance to ultraviolet (UV) radiation. All aluminum materials are anodized for maximum reliability and corrosion resistance. Hardware and fastenings are stainless steel.


The AA3140 antenna’s heavy aluminum mounting casting allows installation for vertical or horizontal polarization.

  • Maximum broadcast coverage at close range
  • Symmetrical broadcast pattern
  • Rugged weatherproof enclosure
  • Corrosion and chemical resistant
  • Vertical or horizontal polarization

Applications

  • Train positioning
  • Rail Automatic Equipment Identification (AEI)

COMMUNICATIONS

Frequency Range

845 to 950 MHz


Gain

8 dBi


Polarization

Vertical or horizontal


VSWR

1.5:1


Half-Power Beam Width

E-Plane: 60°

H-Plane: 90°


HARDWARE FEATURES

Connector

Type N female


PHYSICAL

Dimensions

Size: 10.5 x 2.5 x 10.5 in. (26.7 x 6.4 x 26.7 cm)

Weight: 2.5 lb (1.12 kg)


Enclosure

Weatherproof radome

HOW TO | LOG-PERIODIC ANTENNA CABLE CONNECTOR
