Rail-ID Xpress

High-Performance Fanless Computer for Railway and Industrial Applications

Guide Download

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

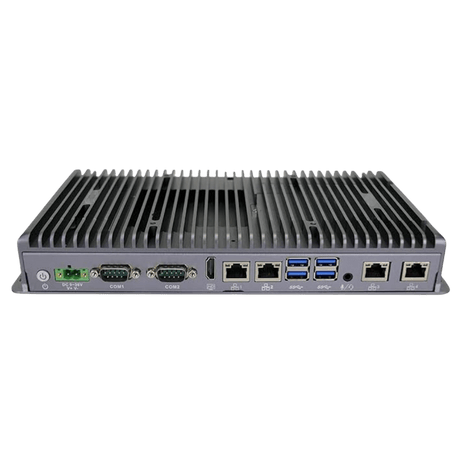

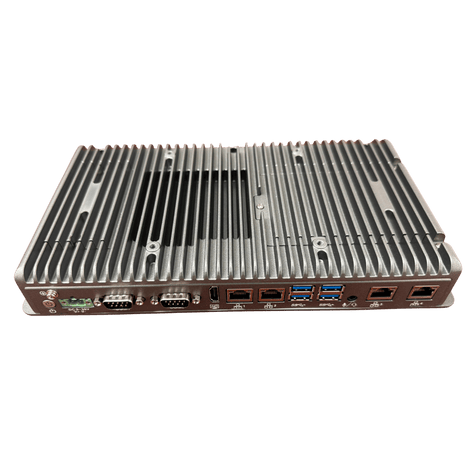

The Intertech Rail Xpress is a rugged, fanless computing platform designed for demanding railway and industrial environments. Powered by Intel® Whiskey Lake U Series processors (i3, i5, or i7), XPRESS delivers reliable performance for real-time data processing, edge computing, and mission-critical connectivity. Its aluminum alloy chassis, wide voltage input, and extended temperature tolerance make it a robust solution for rail operators seeking secure, scalable, and efficient data management across diverse applications.

● Fanless aluminum alloy design: optimized for durability and silent operation.

● Intel® Core i3/i5/i7 processors: scalable performance for data-intensive workloads.

● Wide voltage input (9V–36V) with surge and reverse polarity protection.

● Multiple LAN ports (4× Intel 1000M) for high-bandwidth networking and redundancy.

● Rich I/O options: USB 2.0/3.0, RS232/RS422/RS485, VGA, HDMI, GPIO.

● Flexible expansion: M.2 slot for SSD, Mini PCIe for Wi-Fi/3G/4G with SIM slot.

● TPM 2.0 security encryption: ensures secure data and system integrity.

● Auto power on, PXE boot, Wake-on-LAN, watchdog timer for reliable operations.

● Dual display support (VGA + HDMI) with Intel UHD Graphics.

● Industrial-grade operating range from –20 °C to +60 °C (with SSD).


Botāo de texto

  • Processors: Intel Core i3-10110U, i5-8260U, i7-10810U
  • RAM: Up to 32 GB DDR4
  • Storage: 1× M.2 2280 slot, 1× 2.5” HDD/SSD, RAID 0/1 support
  • Networking: 4× Intel i211-AT Gigabit LAN
  • Interfaces: USB 2.0/3.0, RS232/RS422/RS485, VGA, HDMI, Audio, GPIO
  • Expansion: M.2 slot, Mini PCIe, SIM slot
  • Connectivity: Wi-Fi, 3G, 4G optional
  • Power Input: DC 9–36V, 12V/5A adapter included
  • Operating Range: –20 °C to +60 °C (SSD)
  • Certifications: CE, FCC, RoHS, CCC
  • Dimensions/Weight: 280 × 143 × 40 mm / 1.45 kg


Botāo de texto

●   Railway operations: reliable onboard computing for signaling, diagnostics, and real-time asset monitoring.

●   Industrial automation: control systems, motion control, and SCADA integration.

●   Data acquisition: high-speed logging for predictive maintenance and analytics.

●   Medical and embedded systems: stable and secure processing in mission-critical environments.

●   Vehicle and mobile applications: rugged design with wide voltage input for transport fleets.


Botāo de texto
