Rail-ID® ARK

Intertech Rail's Enclosure System for Asset Identification and Edge Processing in Complex Rail Operations

Guide Download

The Intertech Rail Multi-Line AEI Enclosure System, Rail-ID® ARK, is a purpose-built solution for railway operators who require precise asset tracking and resilient data management. It is designed to support up to four independent tracks and integrates AEI technology, Rail-ID® Edge computing, and environmental monitoring within a customizable enclosure architecture. The result is a secure, reliable, scalable platform that safeguards operational data even in harsh outdoor conditions.

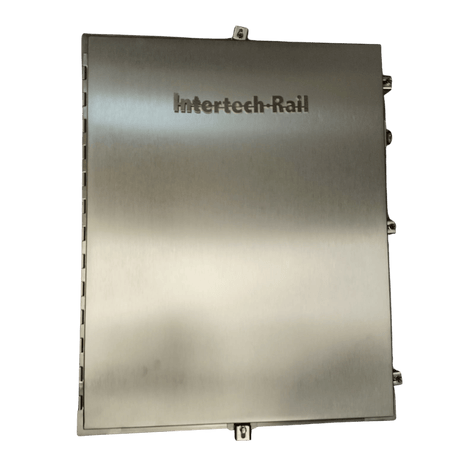

  • Stainless steel electrical enclosure labeled

    Título do Slide

    Escreva sua legenda aqui
    Botão

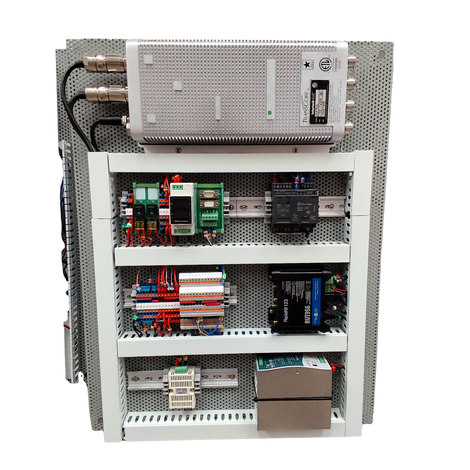

  • Electrical control panel with various components, wiring, and a top-mounted controller.

    Título do Slide

    Escreva sua legenda aqui
    Botão

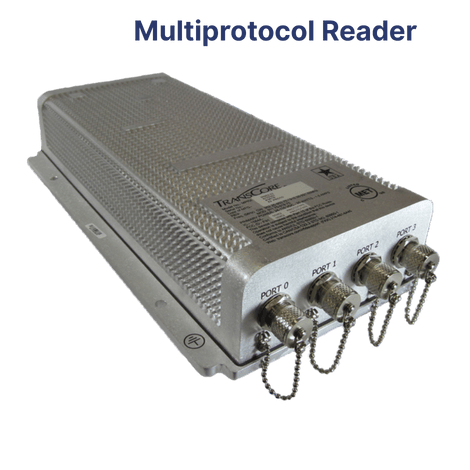

  • Silver multiprotocol reader device with multiple ports.

    Título do Slide

    Escreva sua legenda aqui
    Botão

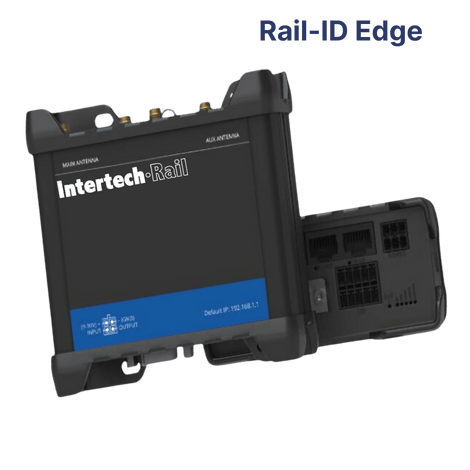

  • Rail-ID Edge device by Intertech-Rail, black and blue, for railway identification.

    Título do Slide

    Escreva sua legenda aqui
    Botão

Unlike conventional AEI enclosures, this system combines advanced sensing, power resilience, and cloud connectivity to ensure uninterrupted operations. The Rail-ID® ARK, Intertech Rail's AEI enclosure, hosts the Rail-ID® Edge, MPRX Multi-Protocol Reader, optional Opta controller, and an industrial-grade modem. Together, these devices capture AEI tag data, axle sensor inputs, and electrical/environmental parameters before transmitting them to the cloud via secure APIs.


A built-in capacitor bank provides up to 50 seconds of backup power during outages, giving the modem time to complete file storage and prevent corruption safely. Environmental sensors continuously log temperature and humidity, offering operators valuable diagnostics for performance validation. In practice, this allows railways to maintain data integrity, analyze conditions, and quickly determine the root cause of any reported issue, whether internal or external to the system.


An optional solar energy module can be added, giving the Rail-ID® ARK Enclosure an easy way to install at sites where external network power is not available.


Botāo de texto

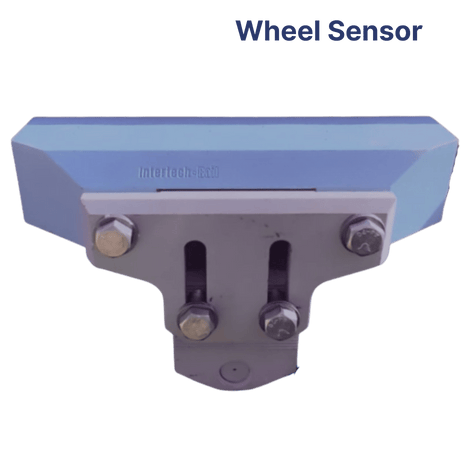

● Multi-line support: manage up to four railway tracks with AEI antennas and axle sensors.

● Integrated RailID® Edge: local processing, filtering, and secure data transmission.

● MPRX Multi-Protocol Reader: high-performance AEI tag capture across multiple antennas.

● Optional Opta controller: expands connectivity for 4-line operations.

● Capacitor-based power buffer: sustains modem activity for 40–50 seconds during outages.

● Electrical monitoring: built-in voltmeter and ammeter.

● Environmental monitoring: temperature and humidity sensors for operational logging.

● Industrial-grade design: robust enclosure for extreme railway environments.

● Cloud-ready integration: API-based data delivery to RailID® Server or client systems.



Botāo de texto

● Rail yards: streamline train assembly and asset tracking across multiple lines.

● Mainline operations: ensure uninterrupted AEI and axle sensor data flow.

● Harsh outdoor sites: maintain reliable performance under heat, dust, and direct exposure.

● Mission-critical data logging: prevent corruption during power interruptions

● Client-driven integration: deliver clean, structured data to enterprise platforms.
