Rail-ID Edge

High-Performance Rail Identification and Connectivity Platform

Guide Download

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

  • Título do Slide

    Escreva sua legenda aqui
    Botão

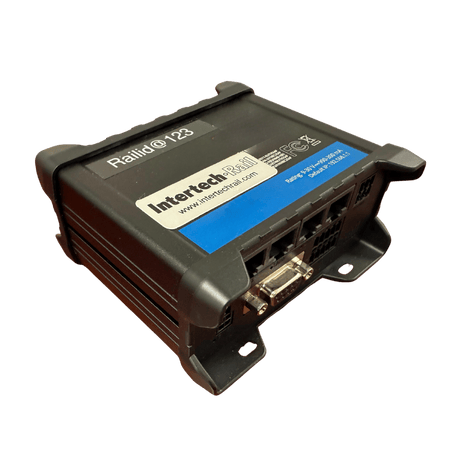

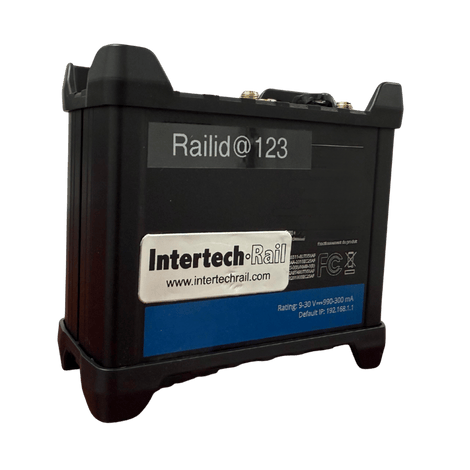

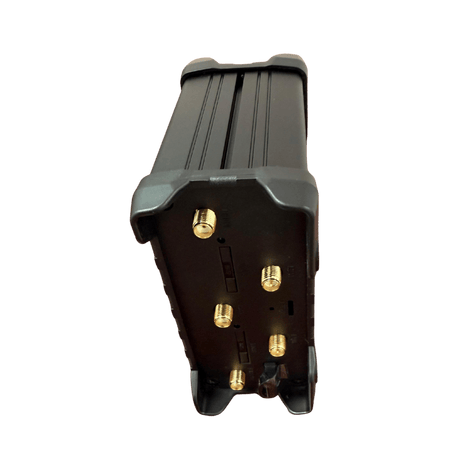

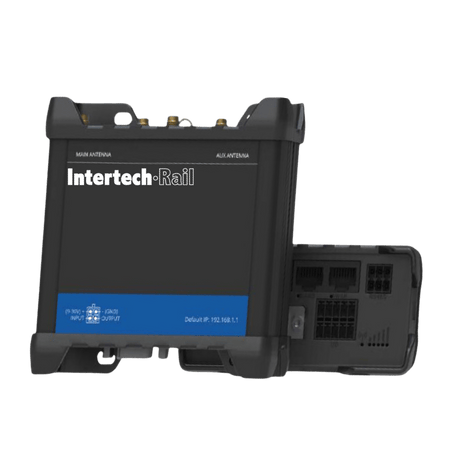

Rail-ID Edge is a versatile industrial computer/modem. It is a rugged device for accurate train and wagon identification in rail environments. Designed to operate in harsh outdoor conditions, it connects with RFID-based identification systems with advanced connectivity, real-time diagnostics, and seamless integration into railway control and signaling systems. Its modular design, weatherproof housing, and multi-protocol support ensure reliable data collection, predictive maintenance, and efficient long-term deployment across global railway infrastructure.

● Compact, durable design optimized for harsh railway environments

● High precision and reliability for train and wagon identification

● Vibration and impact resistance for heavy-duty conditions

● Compatibility with global railway infrastructure and standards

● Real-time diagnostics for predictive maintenance and reduced downtime

● Seamless integration with signaling and communication systems

● Weatherproof, corrosion-resistant housing for outdoor reliability

● Low power consumption with automatic self-adjustment to wear/misalignment

● Long service life with minimal maintenance requirements

● Wide connectivity options: LTE/4G, Wi-Fi, GNSS, Ethernet, RS232/RS485, USB, SD, I/O ports


Botāo de texto

  • Mobile Connectivity: LTE Cat 4 (up to 150 Mbps DL/50 Mbps UL), 3G, 2G fallback, dual SIM with auto-switch
  • Wireless: 802.11 b/g/n Wi-Fi, up to 100 users, WPA3 security, fast roaming
  •  GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS with NMEA 0183, geofencing support
  •  Interfaces: 4× Ethernet (10/100 Mbps), RS232, RS485, USB 2.0, I/O ports, SIM slots, microSD (up to 64 GB)
  •  Protocols: MQTT, SNMP, Modbus, DNP3, OPC UA, BACnet, DLMS/COSEM, HTTP/HTTPS, VPN (OpenVPN, IPsec, WireGuard, etc.)
  •  Power: 9–30 VDC input, <7 W max consumption, reverse polarity and surge protection
  •  Enclosure: Aluminium housing, IP30, DIN-rail/wall/flat mounting
  • Operating Range: –40 °C to +75 °C, 10–90% non-condensing humidity
  •  Certifications: CE, FCC, IC, Anatel, RCM, UL/CSA, PTCRB, Giteki, IMDA, AT&T, Verizon, T-Mobile, hazardous environments (C1D2, Zone 2)


Botāo de texto

● Rail yards: streamline train assembly and asset tracking across multiple lines.

● Mainline operations:  ensure uninterrupted AEI and axle sensor data flow.

● Harsh outdoor sites:  maintain reliable performance under heat, dust, and direct exposure.

● Mission-critical data logging: prevent corruption during power interruptions.

● Client-driven integration: deliver clean, structured data to enterprise platforms.
